Solid&Embossed polycarbonate shet

Short Description:

Solid &Embossed polycarbonate sheet, Solid polycarbonate sheet, PC Solid sheets, Polycarbonate sheets, PC sheets, Embossed sheet Products: Solid &Embossed polycarbonate sheet Thickness: 0.8-12mm for solid PC sheet, 2-5mm for embossed PC sheet. Width: Within 2100mm Length: According to requests Color: Different colors available (Clear, Brown, Blue, Green, Grey, Red, Yellow, Silver, etc) Usage: Swimming pool roof, Bus stop roof, Skylite, Green house, etc, Features： 1) Light weight ...

Send email to us Download as PDF

Product Detail

Product Tags

Solid &Embossed polycarbonate sheet, Solid polycarbonate sheet, PC Solid sheets, Polycarbonate sheets, PC sheets, Embossed sheet
Products: Solid &Embossed polycarbonate sheet
Thickness: 0.8-12mm for solid PC sheet, 2-5mm for embossed PC sheet.
Width: Within 2100mm
Length: According to requests
Color: Different colors available (Clear, Brown, Blue, Green, Grey, Red, Yellow, Silver, etc)
Usage:
Swimming pool roof, Bus stop roof, Skylite, Green house, etc,
Features：
1) Light weight
    2) High impact strength
    3) Fire retardant
    4) Good Light transmission
    5) With UV protection and thermal insulation
    6) Excellent physical, mechanical, and electrical properties
    7) Inhibits condensation
    8) Customized dimensions, thickness and colors available upon request.

ITEM	PICTURE

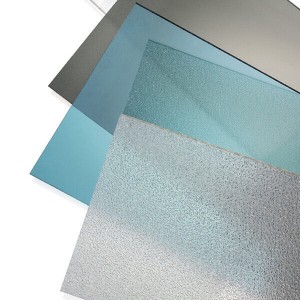

Solid PC sheetThickness: 0.8-12mmMax. width: 1220mm

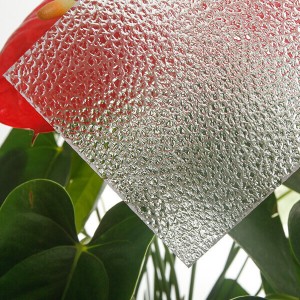

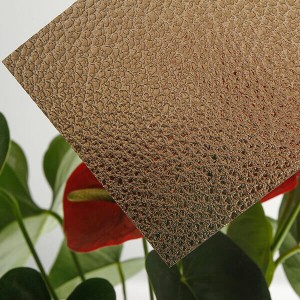

Embossed PC sheetThickness: 2.0-5mmMax.width:2100mm

Technical data:

Performance	Test Method	Units	Indicators
Physics
Density		g/cm3	1.20
Absorption,24hours	ISO 62	mg	10
Water absorption, saturation/23℃	ISO 62	%	0.35
Haze astm	JG/T116-200X	%	0.53
Optical Properties
Transmittance (6mm transparent)	JG/T 116-200X	%	88
MECHANICAL Properties
Tensile yield stress- lateral	JG/T 116-200X	MPa	66
Tensile yield stress-Longitudinal	JG/T 116-200X	MPa	66
Nominal stress fracture- lateral	JG/T 116-200X	%	95
Nominal stress fracture-Vertical	JG/T 116-200X	%	101
Tensile modulus-Transverse	JG/T 116-200X	GPa	2.4
Tensile modulus-Longitudinal	JG/T 116-200X	GPa	2.4
Heating rate of change of size-horzontal	JG/T 116-200X	%	0.3
Heating rate of change of size-Vertical	JG/T 116-200X		-1.55
Yield point flexural strength, 2mm/min	ISO 178	MPa	90
Bending Modulus, 2mm/min	ISO 178	MPa	2300
Impact Performance
Charpy notched impact strength-level(normal termperture)	JG/T 116-200X	KJ/m2	11.0
Charpy notched impact strength-vertical(normal termperture)	JG/T 116-200X	KJ/m2	11.1
Perforation Features
Maximum penetration	JG/T 116-200X		1022
Maximum penetration OF energy	JG/T 116-200X		18.4
Hermal performance
Vicat softening temperature, B/120	JG/T 116-200X	℃	150
Heat distortion temperature, 1.8 MPa	JG/T 116-200X	℃	141
Thermal conductitity	ISO 8302	W/m ℃	0.2
Coefficient of thermal expansion, 23-80℃	ISO 11359-2	1/℃	7.00E-05
Flammability
Oxygen Index	ISO 4589	%	25
Flame Level	GB86240-1997		B1
